INTEGRA Lithium Ion Battery ND2054iN31 REV 1.3 45Wh,3.1Ah REF90522
► Brief Introduction of INTEGRA Battery ND2054iN31 REV 1.3 45Wh,3.1Ah REF90522
INTEGRA Lithium Ion Battery 90522 is with 3300mAh capacity and voltage 14.4V .It’s used on Integra® LED Headlight System .The LED
headlight system features Cool, bright LED light ,Greater Freedom ,Simple, quiet and comfortable .When using the battery ,pls check below :
Warning :Charge only with a smbus compliant lever 2 or 3 charger .Do not heat above 80℃. Do not open battery dispose of in fire or short circuit
.May ignite ,explode ,lead or get hot causing personal injury .Replace battery with same part number only .Use of another battery may present a
risk of fire or explosion .Keep away from Children
► Specification of INTEGRA Battery ND2054iN31 REV 1.3 45Wh,3.1Ah REF90522
| Product Name | INTEGRA Battery ND2054iN31 REV 1.3 45Wh,3.1Ah REF90522 |
| Brand | INTEGRA |
| Application for | Integra® LED Headlight System |
| Part No | 90522 |
| MOQ | One piece |
| Warranty | 90 days |
| Nominal voltage | 14.4V |
| Rated capacity | 3300mAh/47.52Wh |
| Maximum charging voltage | 16.8Vdc |
| Maximum charging current | 1.6A |
| Origin | USA |
| Battery Type | Lithium Ion |
► Recharging the Battery
1.Place the charger on a flat, level surface, away from heat and moisture.
2.Connect the charger base to a 60W power source. Connect the included AC power cord to the power source. Plug the AC power cord into any standard 100V AC to 240V AC, 47-63Hz power outlet.
Note: When using the dual-slot charger, the battery can be placed in either battery slot. Each slot is completely independent and can charge two batteries at the same time.
3.Place the battery into the appropriate slot on the charger, ensuring the 5-pin connector is fully inserted.
4.The charger will automatically begin charging. The LEDs in the charger status window will inform you of the charging status:
Blinking green battery charging
Solid green battery fully charged
Red error resolved: replace battery
5. A completely discharged battery should be fully charged in approximately two and a half (2.5) hours.
6. Each fully charged battery will run for approximately 2 hours on the high switch setting, plus a low battery warning period.

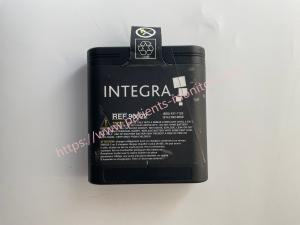

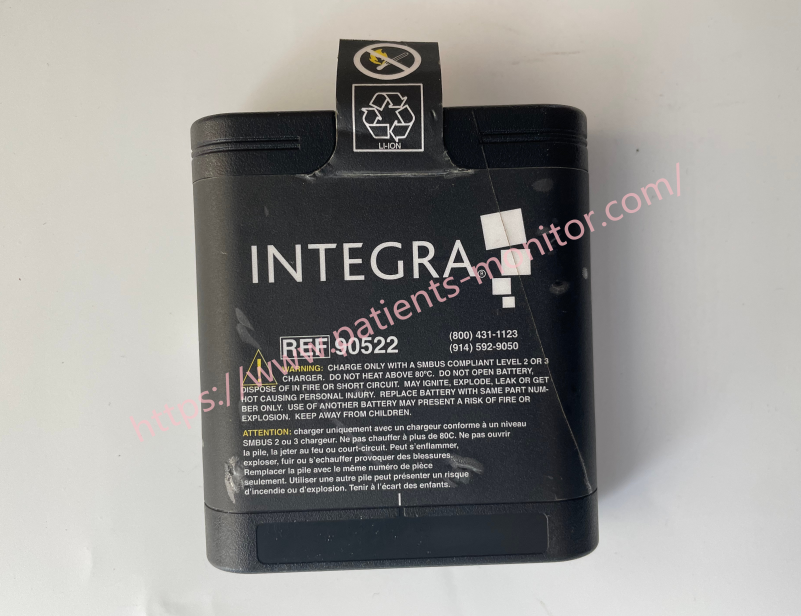

► Photo of INTEGRA Lithium Ion Battery ND2054iN31 REV 1.3 45Wh,3.1Ah REF90522
Thank you so much for your attention .If you're interested in INTEGRA Lithium Ion Battery ND2054iN31 REV 1.3 45Wh,3.1Ah REF90522 ,feel free to contact us .Thank you .
