Main Board for Edan SE-1 SE-100
Edan SE-1 SE-100 ECG Machine Main Board 21.53.18501-1.8 02.03.31818-13 Mainboard Motherboard used
► Brief Description
Edan SE - 1/SE - 100 ECG Machine Main Board 21.53.18501-1.8 02.03.31818-13 is the key component of the device. It is mainly responsible for processing and transmitting ECG signals. It amplifies and filters the weak electrical signals collected by the electrodes from the human body to ensure accurate and clear ECG waveform output for medical staff to diagnose.
It is responsible for controlling the overall operation logic of the ECG machine and coordinating the work between various components, such as communicating with the operation panel to realize function selection, parameter adjustment and other operations.
► Specification
| Brand | Edan |
| Product Category | ECG |
| Product Type | Spare Parts |
| Item Type | Main Board |
| Part Number | 21.53.18501-1.8, 02.03.31818-13 |
| Machine Application | SE-1 SE-100 |
| Condition | Used with Good Condition |
| Warranty | 90 Days |
| Delivery Date | 3 - 5 Working Days |
| Qty. Available | 10 |
| Application | Medical Equipment,Hospital Device |
| Color | Green |
| Applications Scenes | Hospital, ICU, Outpatient |
| Product Edges | Guaranteed quality |
| Material | Plastic, PCB |
► Features
Edan SE - 1/SE - 100 ECG Machine Main Board 21.53.18501-1.8 02.03.31818-13 has the following two performance characteristics:
1. High signal processing accuracy, can effectively reduce interference, accurately extract and process ECG signals, and thus display high-quality ECG waveforms.
2. It has a certain degree of stability and durability, and can adapt to continuous use in working environments such as hospitals.

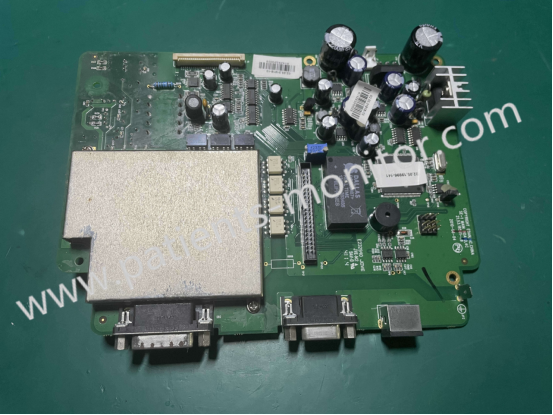

► Detailed Photos
► More Details
When using the Edan SE-1/SE-100 ECG Machine daily, the motherboard may fail. Here are some ways to determine whether the motherboard is faulty:
1. Observe the device startup: After pressing the power button, if the power indicator light is off and there is no response, first check whether the power cord, plug and socket are normal. If there are no problems, it may be a motherboard failure.
2. Check the ECG waveform output: If the lead wires are well connected to the electrodes and the lead wires are not faulty, but there is still no ECG waveform output or the waveform is distorted, it may be that the amplifier, filter, analog-to-digital conversion component on the motherboard is faulty.
3. Detect voltage: Measure the voltage at specific detection points on the motherboard, such as VOP, VB+ and other measurement points on the power board. If the voltage value deviates greatly from the normal range, it may be a motherboard power circuit failure.
Thanks for your interest in Edan SE-1 SE-100 ECG Machine Main Board 21.53.18501-1.8 02.03.31818-13 Mainboard Motherboard used, please feel free to contact me. Thank you for your time and wish you have a happy life.
