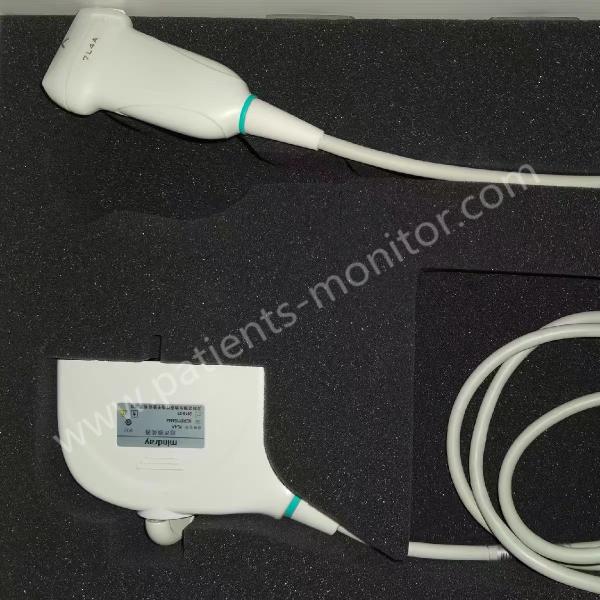

Mindray Ultrasound 7L4A probe new condition
►Brief Introduction
The refurbished Mindray 7L4A probe is used for pediatric abdominal, small parts, vascular, musculoskeletal and nerve imaging applications. This linear ultrasound probe runs at a frequency range of 5 to 10 MHz.
7L4A transducer probe supports the following applications: Abdomen, Pediatric, Small Parts, MSK, Vascular.
► Mindray 7L4A Features
- Linear probe
- Small Parts, Vascular, Musculoskeletal, Nerve
- 5 - 10 MHz frequency range
► Transducer Functions by Part
This section describes the name and function of each part as well as the immersible range of the ultrasonic transducer.
The transducer is classified as "IPX7" according to the degree of protection against harmful ingression of water (from the transducer head to the cable protector).
The connector is not waterproof and must not be immersed into liquids such as disinfectant.
The transducer is shown as follows :
| No. | Name | Function |
| 1 | Transducer head | Converts the electrical signal into an ultrasonic signal, focusing the sound beams in a given direction; meanwhile, it receives the reflected ultrasonic signal and converts it into an electrical signal for transmission over the cable. The lens on the surface is the acoustic lens. Apply ultrasound gel on the acoustic lens for correct operation. |
| 2 | Needle-guided bracket fix tabs and grooves | Provides mounting support of the needle-guided bracket. |
| 3 | Transducer cable | Transmits electrical signals between the transducer body and connector. |
| 4 | Transducer connector | Connects the transducer and cable to the ultrasonic diagnostic system. |
| 5 | Lock handle | Locks the connector to the ultrasonic diagnostic system. |
► Connecting and Disconnecting the Transducer
Connecting the transducer:
After freezing or turning off the ultrasonic diagnostic system, align the connector with the
transducer connector port of the ultrasonic diagnostic system, then turn the lock handle
90° clockwise to lock it securely. See the figure below:
Disconnecting the Transducer:
After freezing or turning off the ultrasonic diagnostic system, turn the lock handle 90°
anticlockwise to unlock the transducer. Remove the connector by pulling it out straight.
See the figure below:
► Purchase Notes/
Before purchase, consider it carefully that what kinds of products you exactly want, new or used. Please be assured that both new and used medical equipments will be thoroughly inspected by our certified engineers to ensure complete functionality, so please rest assured to buy. All our products for sell are in good working order. Finally customer will receive high-quality refurbished or brand-new medical equipment and they are ready to use, which is of great convenience and boost your work efficiency. If you have any questions about the product quality, please don’t hesitate to contact us.
► FAQ
| Q1 | How many years of working experience do your engineers have? |
| A1 | Professional engineers with 12 years of experience |
| Q2 | How about the quality of your products? |
| A2 | Good. |
| Q3 | What are the different payment methods? |
| A3 | T/T,Western Union, PayPal are all acceptable. |
| Q4 | What if we find any damage to the machine we receive? |
| A4 | We provide 3 months warranty. |
If you have any questions about Mindray Ultrasound 7L4A probe new condition, please feel free to contact us at any time, we are glad to answer them. Looking forward to receiving your early inquiry.
