LED Board 21.53.106782-1.2 for SE-1200 Express
Edan SE-1200 Express ECG/EKG Machine LED Board 21.53.106782-1.2, Indicators Board Medical Equipment Spare Parts
► Brief Description
Edan SE-1200 Express ECG Machine LED Board P/N: 21.53.106782-1.2
LED Board 21.53.106782-1.2 for SE-1200 Express - This board is one of the output devices on the Edan SE-1200 Express ECG machine. It is connected to the indicator light on the device. Its main function is to indicate the power status, Battery status, battery charging status. The three indicator lights on this board are very important. The first power indicator light will light up in different colors when turning on/off. The second one is the battery indicator light. When the battery is used to power the electrocardiograph, the indicator light will light up and can also be used to indicate the remaining power of the battery. Finally, there is the battery charging indicator light, which can indicate the charging status of the battery.
► Specification
| Brand | Edan |
| Product Category | ECG |
| Product Type | Spare Parts |
| Product Name | LED Board |
| Item Type | Circuit Board |
| Part Number | 21.53.106782-1.2 |
| Machine Application | SE-1200 Express |
| Condition | Used - Good |
| Warranty | 90 Days |
| LED Indicators | Mains Supply Indicator |
| | Battery Indicator |
| | Battery Recharging Indicator |
| MOQ | One Piece |
► Condition
The Edan SE-1200 Express ECG/EKG Machine LED Board 21.53.106782-1.2 is one of the very important parts of the equipment, which can give users timely indication of the machine status. When the power supply is not connected properly or the battery is low, these indicators can remind the user.
The Edan SE-1200 Express ECG/EKG Machine LED Board 21.53.106782-1.2 is used but in good condition. Because it will be tested by engineers before being sold to ensure that the board is fully functional. There is a 90-day warranty period. During this period, if there are quality problems caused by non-human reasons, you can contact us at any time for replacement or repair.
► More Details
1. Mains supply indicator: When the device is powered by the mains supply, this indicator is lit.
2. Battery indicator: When the device is powered by battery, this indicator is lit.
3. Battery recharging indicator: When the battery is being recharged, this indicator is lit.
Notice:
1. Do not store the Edan SE-1200 Express ECG/EKG Machine LED Board 21.53.106782-1.2 in a humid environment to avoid short circuit, which may affect performance;
2. Do not store the board in a high-temperature environment, as it may affect performance or cause a fire;
3. Please have professional maintenance personnel perform disassembly/installation work to avoid causing damage to the board/machine or endangering your own safety;

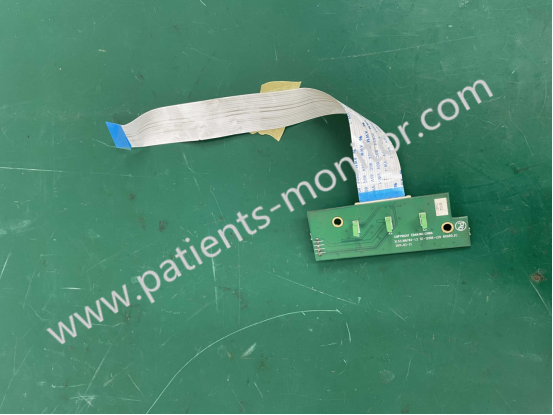

► Detailed Photos
Thanks for your interest in Edan SE-1200 Express ECG/EKG Machine LED Board 21.53.106782-1.2, Indicators Board Medical Equipment Spare Parts, please feel free to contact me. Thank you for your time and wish you have a happy life.
