PHiliph Goldway UT4000F Patient Monitor ECG Board GW4F4E01C Medical Equipment Spare Parts

Name: PHiliph Goldway UT4000F Patient Monitor ECG Board GW4F4E01C Medical Equipment Spare Parts
Brand: Goldway
Price: 1 USD

Wholesale PHiliph Goldway UT4000F Patient Monitor ECG Board GW4F4E01C Medical Equipment Spare Parts from china suppliers

Brand Name : Goldway

Model Number : UT4000F

MOQ : 1 Piece

Price : USD

Payment Terms : T/T, Western Union, Paypal

Delivery Time : 3-5 working days

Packaging Details : Standard Export Packing

Brand : PHiliph Goldway

Product Catgeory : Monitoring

Product Type : Spare Parts

Item Type : Board

Item Name : ECG Board

Model : GW4F4E01C

Color : Green

Size : Small

Application : UT4000F

Condition : Used - Good

Contact Now

Goldway UT4000F Monitor ECG Board

PHiliphh Goldway UT4000F Patient Monitor ECG Board GW4F4E01C Medical Spare Parts

► Brief Description

PHiliphh Goldway UT4000F Patient Monitor ECG Board GW4F4E01C

Goldway UT4000F Monitor ECG Board - This board is used, but is fully functional and in good condition. It can connect to the motherboard and other parts and receive instructions from the motherboard. When ECG monitoring is performed on the patient, this board will start to work accordingly.

This board will be carefully inspected before shipment to ensure it meets your usage requirements. All products of our company have a 90-day warranty. If you have any quality problems with this Goldway UT4000F Monitor ECG Board after you receive it, you can contact us at any time for processing.

► Specification

Brand:	PHiliphh Goldway
Product Category:	Monitoring
Product Type:	Spare Parts
Item Type:	Board
Item Name:	ECG Board
Application Site:	ECG
Application Machine:	UT4000F
Model:	GW4F4E01C
Color:	Green
Size:	Small
Condition:	Used - Good
Warranty:	90 Days

► More Details

Generally, before starting to test the patient, an ECG test will be performed. The steps are as follows:

1. First, you need to adjust the ECG simulator to a heart rate of 80bpm and an ECG gain of 1mV;

2. Connect one end of the ECG cable and lead wire cable to the ECG connector interface of the UT4000F patient monitor, and the other end to the simulator;

3. Observe the ECG channel to see if there is any murmur in ECG lead II. When the R wave appears, there will be a "beep" sound;

4. Check whether there is ECG waveform and noise interference in each ECG lead; adjust the ECG gain to 2mV and observe whether there is any change in the ECG waveform;

5. Unplug the RA from the simulator and observe whether the screen prompts "lead off";

6. Reconnect the RA lead and set the 1mV calibration, and observe whether the 1mV calibration square wave overlaps. The ECG test is completed.

► ECG Performance Specifications

Patient Safety Standard	IEC60601-1-1988
CMRR	≥60dB (Common Mode Rejection Ratio)
Measure Range	15 ~ 300bpm ± 1bpm
Heart Rate Averaging	8 second average
ST Segment Range	-0.8 ~ + 0.8mV
Interface	AAMI 6-pin
Lead Selection	I, II, III (3 lead mode) I, II, III, aVR, aVL, aVF, V (5 lead mode)
Lead Fault Alarm	Audible, Visual
Input	5-lead ECG patient cable
QRS Indicator	Audible and Visual Alert
Waveform Storage	6 minutes
Sweep Speed	12.5/25/50 mm/sec
Gain Selection	4mV, 2mV, 1mV, 0.5mV, 0.25mV,Auto
Trends	2 hours → 4 hours → 8 hours → 24 hours → 48 hours
Patient Isolation	Breakdown voltage: 4000VAC, 50Hz, 60 seconds, Leakage current: <10A
Frequency width	Monitoring mode: 0.5 ~ 40Hz (+0.4dB,-3.0dB) Surgery mode: 0.5 ~ 20Hz (+0.4dB, -3.0dB) (not calibration significant)
Patient Drive Current	< 10A
Enclosure Leakage Current	< 0.1mA
Maximum T wave Rejection Capability	1.2mV
Heart Rate Alarm Response Time	< 7 seconds
Aspect Ratio	0.24 ~ 0.6 sec/mV
Defibrillator Protected & ESIS Protected	Tested with 5kV
Recovery Time Following Defibrillation	< 5 seconds

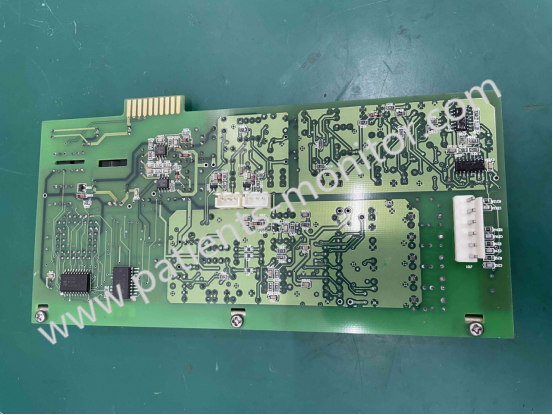

► Detailed Photos

PHiliph Goldway UT4000F Patient Monitor ECG Board GW4F4E01C Medical Equipment Spare Parts

Thanks for your interest in PHiliphh Goldway UT4000F Patient Monitor ECG Board GW4F4E01C Medical Spare Parts, please feel free to contact me. Thank you for your time and wish you have a happy life.
