PHiliphh VS2+ Patient Monitor AC Power Interface Connector 1EHG802 F8289 453564298131
AC power connector introduction
The AC power connector on a patient monitor is usually a standard power plug that connects the monitor to an electrical outlet. The exact type of connector may vary by monitor make and model, but common types include a standard three-prong plug or an IEC 60320 C13 plug.
It is important to ensure that the monitor is plugged into a properly grounded electrical outlet to ensure safe and reliable operation. Also, some monitors may have built-in power supplies and may require power cords with specific voltage and current ratings. Be sure to consult your monitor's owner's manual or contact the manufacturer for specific instructions on connecting the monitor to AC power.
Specification
| Product Name | PHiliphh VS2+ patient monitor power interface 1EHG802 F8289 453564298131 |
| Brand | PHiliphh |
| Use for | PHiliphh VS2+ patient monitor |
| Frequency | 50-60HZ |
| MOQ | One piece |
| Warranty | 90 days |
Removing the AC power connector
1.Separate the front panel from the rear housing assembly
2.On VS2+ with the recorder option, remove the recorder
3.Remove the cable strap that secures the power input cable to the chassis.
4. Disconnect the power input cable from the power supply assembly
5.Disconnect the ground wire

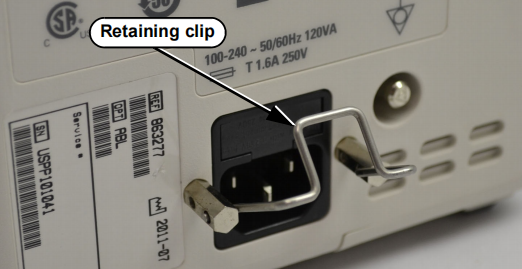

6.Squeeze the power cord clip and remove it from the bolt.
7.Using a 6 mm wrench to secure the bolt, remove the bolt while unscrewing the bolt from the front.
8.Removing the AC Power Entry Assembly from Inside the Rear Housing
